SOLO 3D FILMING SYSTEM

3D AIR is a lightweight, intelligent, and automated spatial/3D video shooting system. Its inception has completely revolutionized the traditional, heavy, and complex professional 3D filmmaking process, enabling a single person to easily create high-quality spatial/3D videos with outstanding stereoscopic effects.

Historical Accumulation

From the early days of red-blue glasses to the flourishing of modern digital 3D cinema, each step signals that immersive experiences will be the future direction of human visual development.

Consistent Commitment

Since our establishment in 2009, we have been dedicated to the research and production of spatial video shooting equipment. Through more than a decade of relentless effort, we continuously upgrade and iterate our products, accumulating technological and experiential reserves, waiting for the right moment to shine.

A New Beginning

With the rapid advancement of technology, we have entered an era of new technological breakthroughs. The trend toward lightweight 4K cameras and lenses, along with the increasing availability of AR headsets or devices like Apple Vision Pro and Meta Quest 3 that support 3D viewing, has reinforced our determination to create a new intelligent spatial video shooting product that aligns with current popular shooting systems.

In today’s popular stereoscopic video shooting methods, although smartphone technology can capture 3D videos/spatial videos, the fixed and unadjustable optical axis distance, along with limitations in resolution, frame rate, and other parameters, often result in less than ideal stereoscopic effects. This can occur especially when the shooting distance is too far or too close, and in some cases, a good 3D effect may not be achievable at all.

The advantage of balanced shooting (such as stereoscopic fisheye lenses or balanced shooting systems) lies in wide-angle VR capturing. However, due to their larger horizontal spacing, visual distortion or unnatural stereoscopic effects can often occur when filming non-wide-angle scenes. The increased left-right disparity can lead to a “shock effect,” which may cause visual fatigue for viewers during prolonged viewing. Therefore, while both methods are effective 3D shooting solutions, they are not the best choice for professional stereoscopic filmmaking.

Integrated Design

The 3D AIR discards the heavy body, integrating the LiDAR distance measuring module, signal module, 3D stereoscopic image processing module, electronic control module, and power supply module within the sunshade. By using locking components, the two sets of lenses and the camera are combined on the sunshade, eliminating the need for complex installation and setup steps.

Nano-Grinded Lenses

Generally, the image clarity of DSLR lenses rapidly declines beyond 70mm focal length, becoming unusable above 120mm. While lenses may appear smooth, they remain rough and uneven at the nanometer level. To address this, the DSLR lenses in 3D AIR are specially crafted using nanometer grinding technology, ensuring that images reflected at focal lengths above 200mm are sharp and clear.

Aerospatial-Grade Lightweight Material

The 3D AIR features an innovative design that combines magnesium-aluminum alloy and carbon fiber, offering multiple advantages such as lightweight, high strength, and corrosion resistance. This material combination is commonly found in high-performance components for aircraft and automobiles, providing 3D AIR with exceptional portability and durability. The magnesium-aluminum alloy is lightweight yet sturdy, with excellent heat dissipation and impact resistance, while carbon fiber boasts high rigidity and fatigue resistance, ensuring lasting strength and stability while maintaining a lightweight design. To better suit individual operators, we strictly control the weight of the 3D AIR, minimizing the user’s burden and enhancing energy efficiency for a more effective user experience.

Portable and Easy to Carry: Say No to Overweight Operations

Weighing only 1159g, the 3D AIR is up to seven times lighter than traditional spatial video shooting products, with an overall size reduction of eight times. This makes mobile shooting easier and transportation more convenient.

3D AIR
220*105*115mm
1159g
3D ARMOR 3
560*400*440mm
8450g
3ALITY-TS5
420*406*245mm
7711g

Two Models

The 3D AIR is available in two versions: the 3D AIR SMART and the 3D AIR SMART MINI. The two models differ slightly in viewing angles, adjustable optical axis range, and appearance, allowing users to choose based on their shooting needs.

3D AIR

Two Models

The 3D AIR is available in two versions: the 3D AIR SMART and the 3D AIR SMART MINI. The two models differ slightly in viewing angles, adjustable optical axis range, and appearance, allowing users to choose based on their shooting needs.

Optical Axis Range

The 3D AIR is available in two versions: the 3D AIR SMART and the 3D AIR SMART MINI. The two models differ slightly in viewing angles, adjustable optical axis range, and appearance, allowing users to choose based on their shooting needs.

3KG * 2
3D AIR SMART / SMART MINI
Max Load Capacity

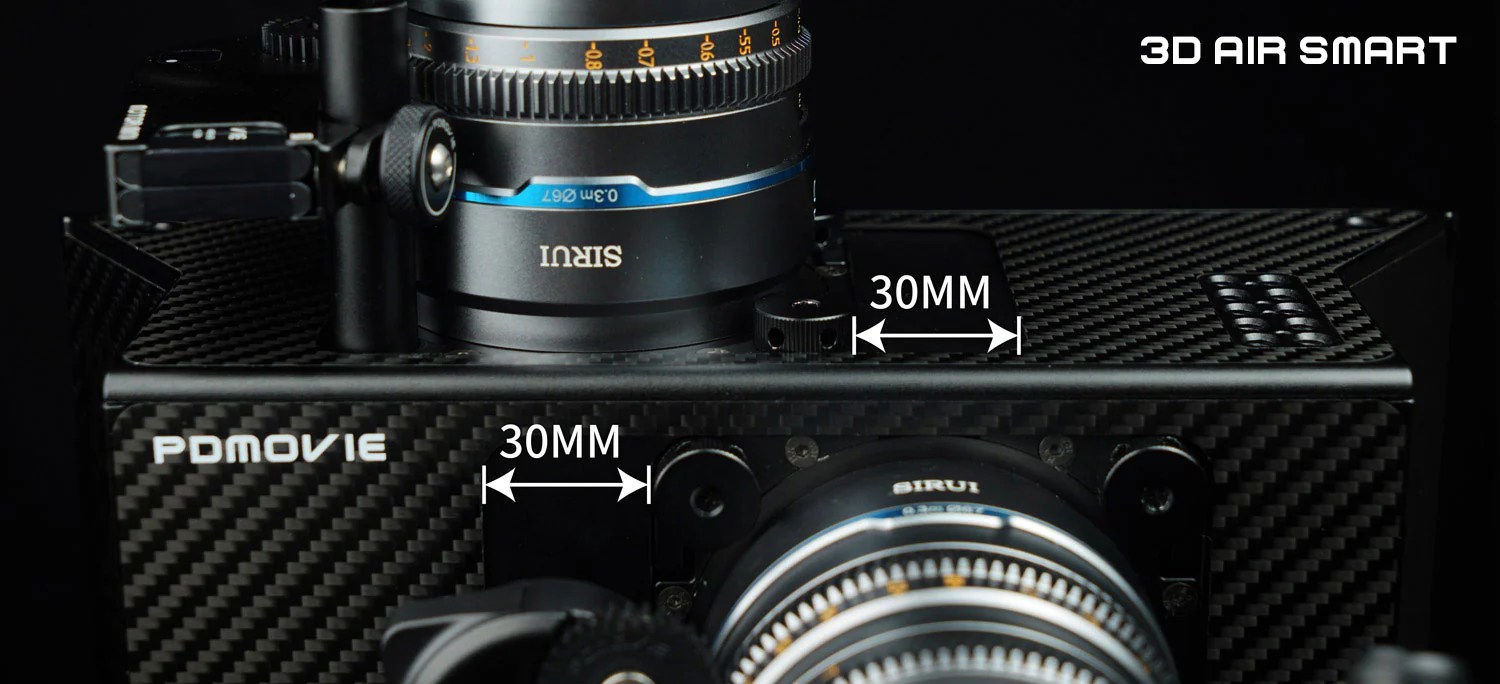

Optical Axis Range

The 3D AIR is available in two versions: the 3D AIR SMART and the 3D AIR SMART MINI. The two models differ slightly in viewing angles, adjustable optical axis range, and appearance, allowing users to choose based on their shooting needs.

LiDAR
5M
Scanning Distance
28°
Scanning Range
Automatic Focus
5 Groups
Lens Data Storage
3 Levels
Adjustable Focus Speed
SYNC Autofocus
SYNC Autofocus
Automatic 3D effect adjustment

AI Rapid Smart Algorithm

Our AI high-speed intelligent algorithm is innovatively developed based on over a decade of Remote Air APP accumulated lens data, combined with the extensive AI lens data processing experience from Motor Smart products in real-world applications. This algorithm can simulate and accurately identify the focal positions of lenses with varying focal lengths. By calculating the optimal stereo depth data for each lens based on focal distances, it enables automatic adjustment of the stereoscopic effect. Paired with high-precision refractive lenses crafted using nanometer-level grinding technology, it significantly enhances the convenience, efficiency, and accuracy of 3D shooting.

Scanning Rate Comparison

AI Human-Eye Imitation Technology

The 3D AIR is equipped with AI human-eye imitation technology, offering three preset levels of stereoscopic effects—strong, medium, and comfortable—as well as three focus speeds—fast, medium, and slow—to adapt to different shooting scenarios and needs. It supports saving five sets of lens data for quick resumption of shooting after lens changes.

Automatic Stereoscopic Depth Adjustment with Multi-Axis Coordination

During the simultaneous operation of optical axis distance and focus, the focus and convergence angle are interconnected, with the focus position serving as the convergence point. You can easily determine positive disparity (out-of-screen effect) and negative disparity (in-screen effect) based on the position of the focus, making it easier to capture stunning stereoscopic images.

Manual Control

The 3D AIR allows for manual control of the optical axis and focus synchronization through a connected controller. If you prefer not to use the automation feature, you can still choose the manual control mode. Manual control supports multi-axis synchronized interaction and allows the decoupling of focus from the convergence angle and optical axis distance, enabling finer control.

Boundless Interaction: Explore Infinite Possibilities

Built-in 3D Image Composition Processing System

The 3D AIR captures signals from two cameras, synthesizing and processing them to output a single video signal for effect monitoring of the stereoscopic effect. It supports various HD and even 4K formats of stereoscopic video signals. Whether using standard monitors, 3D monitors, AR glasses, or MR headsets, users can monitor the 3D effects in real time.

1920*1080 Anaglyphic 3D

This format allows stereoscopic effects to be viewed directly on standard monitors by wearing red-blue glasses.

1920 * 1080 60P Half Side by Side

This format can be displayed on traditional devices such as 3D monitors, televisions, and projectors to view the stereoscopic effects.

1920 * 1080 60P Side by Side(Cut)

This format is used for mechanically correcting the offset between the two camera images and calibrating the focus of both cameras.

3840 * 1080 30P Full Side by Side

This format enables viewing stereoscopic effects using head-mounted devices like Vision Pro and Thunderbirds.

Shoot and Use Immediately

During the shooting process, in addition to the internal recording material from the two cameras, video signals can also be output through the 3D composition processing system. This allows for external recording using popular external recorders or monitors with recording capabilities, skipping the post-production editing process and instantly obtaining 3D footage. It can be used for playback during shooting to review the stereoscopic effects or for a series of pre-editing tasks.

Streamlined and Accelerated Process

Multi-Compatibility

The 3D AIR supports most small cameras, camcorders, and lenses, allowing you to combine and use them based on your needs.

3D/Spatial Photos

In addition to video shooting, the 3D AIR can help you capture stunning 3D/spatial photos. You can also use the 3D AIR for various fun and creative long-duration time-lapse shots.

Lens Inner Rings

The 3D AIR comes standard with 10 lens thread inner rings, including 58mm, 67mm, 72mm, and 77mm. If you need other sizes, such as 49mm, 52mm, 55mm, 62mm, or 82mm, they are available.

Lens Supports

The 3D AIR includes four lens supports, allowing you to pre-install two sets of lenses for easy switching during shooting.

Quick Installation Process

Install Lens Inner Rings – Install Lens Supports – Lock Camera to 3D AIR View Complete Tutorial Video

Quick Screen Calibration

Start 3D Synthesizer – Adjust Screen Rotation Angle – Align Screen Vertically

Quick Editing and Output

Import Edited L and R Material – Synthesize 3D Format Project File and Automatically Align 3D Images – Output 3D Video Format Film

PDL-TC-AFX

The 3D AIR is equipped with the PDL-TC-AFX handwheel controller, which can be used for wireless control of the optical axis adjustment and focus of the two sets of images.

100-meter Transmission Distance

Weighs Only 28 grams

10 Hours of Battery Life

PD-BTMP-N

The PD-3DA-SM and PD-3DA-SPM kits include two focus motors, allowing for automatic or manual control of the focus for both sets of lenses.

0.75 Nm Torque

Weighs Only 132 grams

8 Hours of Battery Life



Function Ports

Max Distance: 5 meters, FOV: 28°
Setting
POWER
FOCUS STATUS
3D EFFECT
Flashing = Manual
Solid = Automatic
3D SYNTHSESIS
3D SYNTHSESIS STATUS

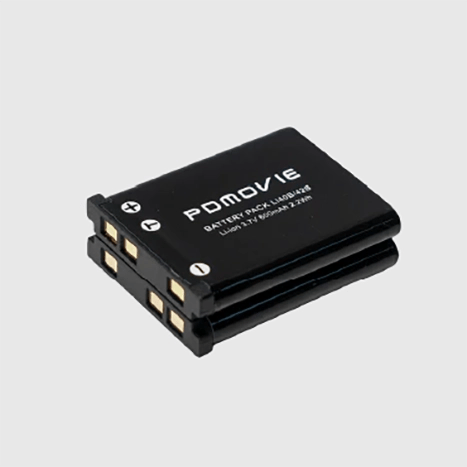

LI-42BX3 Battery Pack
6 Hours of Battery Life (2 hours with synthesizer on)
Fully Charged in 60 Minutes
Off = Not Charging
Yellow = Charging
Green = Fully Charged
Model3D AIR SMART3D AIR SMART MINI
Weight1259g1159g
Size300*105*115mm220*105*115mm
Scanning DistanceMAX 5mMAX 5m
Scanning Range28°28°
Adjustable IOD DistanceMAX 60mmMAX 46mm
3D AIR Battery Life6-8 Hours (2 Hours with Synthesizer On)6-8 Hours (2 Hours with Synthesizer On)

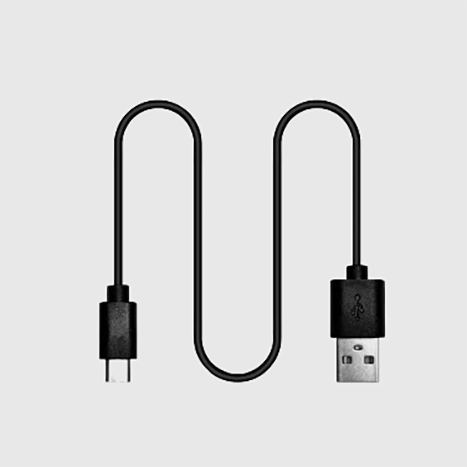

Power SupplyLi-42Bx3 Battery USB-C 5V 3ALi-42Bx3 Battery USB-C 5V 3A
Shooting AngleX 73.7°, Y 45.7°X 73.7°, Y 45.7°
Load CapacityMAX 3KG*2MAX 3KG*2

Video

Installation and setup process
Editing output process
Watching Process
3D/Spatial Video Appreciation
